Marantz PM8006 Stereo Integrated Amplifier

Brand: Marantz
Product Code: MAR-PM8006
Warranty: 2 Years (3 Years with Online Registration)
Colour: *

$2,799.00
Qty:
Marantz
Truck
Free Shipping On Orders Over $75.00
Padlock
256-Bit SSL Secure Ordering System
Shield
Australian Warranty On All Products
Please enter your post code to obtain a shipping estimate for this product.
Post Code:
Store Categories

Integrated Amplifier with New Phono-EQ

For the integrated amplifier connoisseur, the PM8006 delivers the power you expect from a Marantz. Not only does it deliver the controlled power that audiophiles demand, it creates the warm musical sound you expect from Marantz.


Key Features

  • Integrated for maximum power: Integrated Current Feedback Amplifier with 2 x 70W / 8 ohm RMS.
  • Smooth volume control: Newly designed electric volume circuit.
  • Marantz pure vinyl: Exceptional Marantz musical phono EQ stage.
  • Smoother more Marantz sound: Marantz proprietary HDAM-SA3 circuits.

Marantz PM8006 Stereo Integrated Amplifier

Current Feedback

Current Feedback amplification is a well-known, Marantz original circuit technology, thoughtfully designed to match the requirements of Super Audio hi-res music for wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited, generating a very low phase shift. Marantz Current Feedback amplifiers reduce the need for phase compensation by minimizing Negative Feedback (NFB). This simplifies the signal path and results in a high through-rate, excellent transient response and superb sonic transparency across the full bandwidth. Unlike conventional Voltage Feedback topology, Current Feedback also makes the power amplifier insensitive to difficult loudspeaker loads.


Marantz PM8006 Stereo Integrated Amplifier

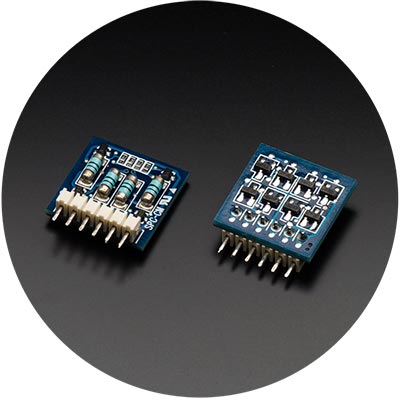

Marantz HDAM Technology

Marantz developed its own discrete circuit boards called Hyper-Dynamic Amplifier Modules, or HDAMs, to replace the chip based amps used elsewhere. Using discrete surface mount components with short mirror-image left and right signal paths, HDAMs outperform the regular integrated Op-amps dramatically in Slew Rate and noise level. The result is much more dynamic, accurate and detailed sound. Over the years, Marantz has developed different HDAMs to fit the particular requirements of players and amplifiers. The PM8006 uses the high-grade SA3 version.


Marantz PM8006 Stereo Integrated Amplifier

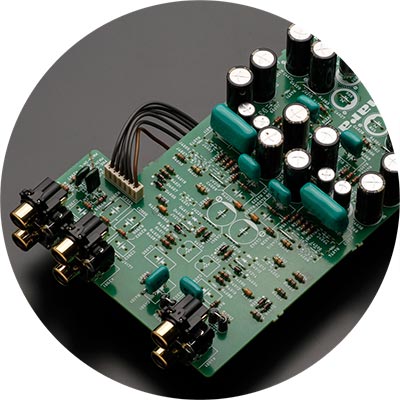

Marantz Musical Phono EQ

For a long time, Marantz integrated amplifiers have featured high-quality phono stages. We’ve elevated our commitment to vinyl with the Marantz Musical Phono EQ stage, as seen in the PM8006 amplifier. Enjoy the very best playback of all music sources, be they digital or analogue. Marantz Musical Phono EQ uses two-stage amplification, allowing less gain per stage for lower distortion. The PM8006 combines Marantz HDAM technology with JFETs (junction gate field-effect transistors) in the input stage, providing high input impedance that eliminates the need for AC coupling capacitors and simplifies the signal path, vastly improving the signal purity overall.


Marantz PM8006 Stereo Integrated Amplifier

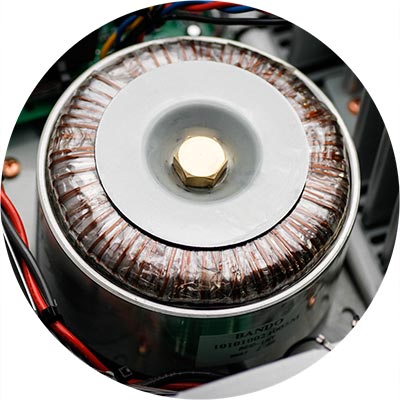

Toroidal Transformer

A Toroidal transformer offers several advantages that derive from its efficiency and power capability. The shape of it lends to low levels of electromagnetic radiation and mechanical vibration, producing improved sound quality over what you might experience with dated transformer models.

Features
Channels 2
Current Feedback Topology Yes
Full Balanced Circuitry Architecture No
Double Mono Power Amp Construction No
Phono EQ: Standard / Class A / Constant Current Feedback No / Yes / No
Digital In: USB-B / Optical / Coaxial / USB-A No / No / No / No
Sample Rate Digital In No
USB-A: DSD / WAV / FLAC / AIFF / ALAC No
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 No
USB-B PCM Sample Rate No
DAC Chip No
Asynchronous Mode Rear USB No
Bit-Perfect Transmission No
Ground Isolator for DAC Mode Operation No
Bluetooth / aptX / NFC No
Streaming Audio from PC No
Wi-Fi / Wired LAN No
Internet Radio No
AirPlay Audio Streaming No
Windows Play To No
vTuner / Spotify No
DLNA Certified No
DSD-Audio Network Streaming No
Lossy Formats: MP3 / WMA / AAC No
Lossless Formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF No
Gapless Playback No
Remote APP: iDevice / Android No
Analogue Mode No
HDAM Version SA3, SA2
Power Transformer: Toroidal / El Yes / No
High Grade Audio Components Yes
Customised Components Yes
Symmetric PCB Layout Yes
Aluminium Extrusion Heat Sink Yes
Copper Plated Chassis No
Tri Tone Control (Bass / Mid / Treble) Yes
Balance / Bass / Treble / Loudness Yes / Yes / Yes / No
Other
Marantz Musical Digital Filtering No
Linear Drive Power Supply Yes
Liniear Volume Control Yes
Bi-Amp and Multichannel Option No
Shottky Diodes Yes
Input Buffer Amp (All Inputs / CD Only) No / Yes
System Block Shielding: Copper / Metal / None No / No / Yes
Double Layer Bottom Plate Triple
Low Noise OELD Display No
Low noise LCD Display No
Source Direct Yes
Power Amp Direct Yes
5 mm Aluminium Top Plate No
Inputs / Outputs
Audio Inputs 6
Digital In: USB-B / Optical / Coaxial / USB-A No / No / No / No
Phono Input: MM / MC Yes / No
Audio Outputs 1
Balanced In / Out No / No
Pre-Out / Main-In 1 / No
Power Amp Direct In Yes
Gold Plated Cinch Yes
Speaker A / B Yes
Speaker Terminal Marantz SPKT-1+
Number of Terminals 4
D-Bus Yes
Floating Control Bus (3.5 mm Mono Jack x 2) No
Headphone Out Yes
Headphone Gain Control (Low / Mid / High) No
Specifications
Power Output (8 / 4 Ohm RMS) 70 W / 100 W
Frequency Response 5 Hz-100 kHz
Total Harmonic Distortion 0.02%
Damping Factor 100
Input Sensitivity: MM 2 mV / 47 kOhm
Input Sensitivity: MC No
Signal to Noise Ratio: MM/MC 87 dB / No
Input Sensitivity: High level 200 mV / 20 kOhm
Input Sensitivity: Balanced High level No
Signal to Noise Ratio: High level 106 dB (2 V Input)
Input Sensitivity: Power Amp Direct In 1.6 V / 15 kOhm
Signal to Noise Ratio: Power Amp Direct In 125 dB
General
Available Colours: Gold / Silver / Black / Silver-Gold No / No / Yes / Yes
Metal Front Panel Yes
Power Consumption 220 W
Standby Consumption 0.2 W
Auto Power Off Yes
Detachable Power Cable Yes
Remote Control RC001PMND
System Remote Function Yes
Maximum Dimensions (W x D x H) 440 x 379 x 128 mm (17.3" x 14.9" x 5.0")
Weight 12 kg (26.5 lbs)
