Integrated Stereo Amplifier with HEOS Built-In
Enjoy the most musical sound for your audio collection with the Marantz PM7000N integrated stereo amplifier with HEOS Built-in.
Key Features
- Power to suit your audio preference: 2ch fully discrete current feedback integrated Hi-Fi amplifier; 60 W per channel (8-ohm, 20 Hz – 20 kHz).
- Wide range of connectivity: Four analogue inputs, one analogue output, one coaxial input, two optical digital inputs and one USB-A for high resolution audio files.
- Advanced Marantz sound: Wider dynamic range with lower distortion for the output stage from Marantz's latest HDAM-FA3 technology.
- Flexibility for all configurations: Tone control to tune sound to your exact specifications and dedicated subwoofer output for evenly dispersed bass, no audible peaks or dips.
Modern Integrated Amplifier
The PM7000N is the first fully discrete, current feedback integrated Hi-Fi amplifier with HEOS Built-in technology from Marantz. It is the ideal choice for audiophiles that require Marantz Musical sound with flexible operation and access to digital streaming music. The amplifier delivers a powerful 2x 60W into 8 ohm or 2 x 80 W into 4 ohm (20 Hz – 20 kHz).
Fully Discrete Current Feedback Power Amplifier
Current Feedback amplification, a renowned Marantz-proprietary circuit technology, is thoughtfully designed to match the requirements of Super Audio hi-res music for wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited, generating a very low phase shift. Marantz Current Feedback amplifiers reduce the need for phase compensation by minimizing Negative Feedback (NFB).

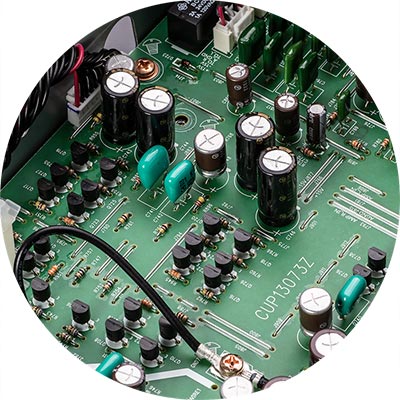

Marantz HDAM-S3 Technology
Marantz developed its own discrete circuit boards called Hyper-Dynamic Amplifier Modules, or HDAMs, to replace the chip-based amps used elsewhere. Using discrete surface mount components with short mirror-image left and right signal paths, HDAMs outperform the regular integrated Op-amps dramatically in Slew Rate and noise level. The result is much more dynamic, accurate and detailed sound. Over the years, Marantz developed different HDAMs to fit the particular requirements of each player and amplifier. The PM7000N uses the high-grade SA3 version.
The Most Musical Sound
Engineered and extensively tuned by a team drawing on more than 65 years of Hi-Fi expertise, the PM7000N provides exceptional performance for your audio collection. Whether digital or analogue, enjoy the most musical sound from any source.
| Features | |
| Channels | 2 |
| Current Feedback Topology | Yes |
| Phono EQ: | OP Amp + FET Input Stage |
| HDAM Version | HDAM-SA3, SA2 |
| Power Transformer | Toroidal |
| High Grade Audio Components | Yes |
| Customised Components | Yes |
| Symmetric PCB Layout | Yes |
| Aluminium Extrusion Heat Sink | Yes |
| Tone Control: Bass / Treble / Balance | Yes / Yes |
| Source Direct | Yes |
| Pure Modes | 3 |
| Network | |
| HEOS Multi-Room and Streaming / Network Audio Streaming | Yes / Yes |
| Lossy Formats: MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless Formats: FLAC / ALAC / WAV | Yes / Yes / Yes |
| Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 | Yes / Yes / Yes |
| DSD Audio Streaming | Up to DSD 5.6 |
| Gapless Playback | Yes (FLAC, WAV, ALAC, DSD) |
| AirPlay 2 Audio Streaming | Yes |
| Internet Radio | Yes (TuneIn) |
| Spotify Connect / Deezer / TIDAL / Napster / Pandora / SiriusXM | Yes / Yes / Yes / Yes / Yes / Yes |
| Support for Voice Control: Alexa/Google Assistant / Siri | Yes / Yes / Yes |
| Compatible with Remote APP for Smart Phones | HEOS |
| Ethernet / Wi-Fi | Yes / Yes (Dual Antenna/Dual Band) |
| Bluetooth | Yes |
| Others | |
| FL Display | 3 Line OLED |
| GUI Languages | English / French / Spanish |
| Setup Assistant | Yes |
| Firmware Update by Network / USB | Yes |
| Variable Cross Over | Yes (40/60/80/100/120 Hz) |
| Shield Case for Digital Circuit | Yes |
| IR Learning for TV Remote | Yes |
| Auto Power On / Off | Optical In 1 / Optical In 2 / Coaxial In (Default: OFF) |
| Sleep / Timer | Yes |
| Inputs / Outputs | |
| Audio Inputs | 4 |
| Phono Input: MM | Yes |
| Digital In: Optical / Coaxial | 2 / 1 |
| USB-A | 1 (Rear) |
| Recorder Out | Yes |
| Pre-Out | Subwoofer |
| Power Amp Direct In | No |
| Gold Plated Cinch | Yes |
| Speaker A / B | No |
| Speaker Terminals | Marantz SPKT-1+ |
| Number of Terminals | 1 Pair |
| Remote Control Bus In / Out | Yes |
| Headphone Out | Yes (Front) |
| Specifications | |
| Power Output (8 / 4 Ohm RMS) | 60 W / 80 W |
| Frequency response | 5 Hz – 100 kHz ±3 dB |
| Total Harmonic Distortion | 0.02% |
| Damping Factor | 100 and Over |
| Input Sensitivity: MM | 2.0 mV / 47 kΩ/kohms |
| Signal to Noise Ratio: MM | 87 dB (5 mV input, 1 W Output) |
| Input Sensitivity: High level | 220 mV/18 kΩ |
| Signal to Noise Ratio: High level | 115 dB (2 V Input, Rated Output) |
| General | |
| Available Colours: Gold / Silver / Black / Silver-Gold | No / No / Yes / Yes |
| Metal Front Panel | Yes |
| Power Consumption | 220 W |
| Network Standby Consumption | 4.7 W |
| Standby Consumption | 0.4 W |
| Detachable Power Cable | Yes |
| Remote Control | Yes |
| System Remote Function | Yes |
| Maximum Dimensions (W x D x H) - Excluding Antennas | 440 x 125 x 379 mm (17.32" x 4.92" x 14.92" |
| Weight | 10.80 kg (23.8 lb) |
