The CP-WT140LCR is a multi-purpose speaker, for portrait or landscape applications as a high performance music or theatre satellite.
Utilising twin 4" MMP II drivers astride a C-CAM tweeter, the drivers offer greater radiating area working in tandem than a single 6" bass driver.

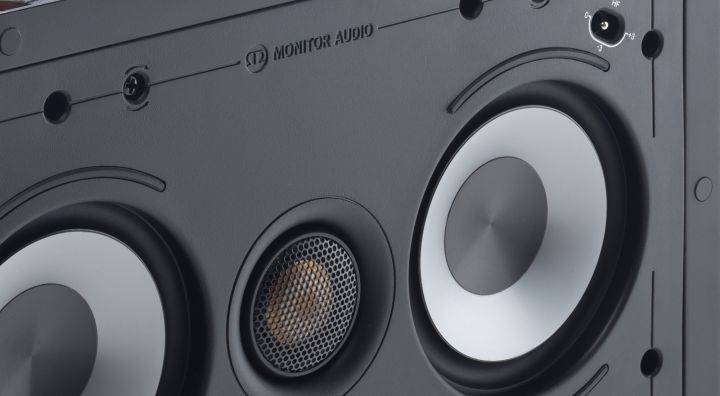

- Pivoting C-CAM Gold Dome tweeter.
- 2 x MMP II bass drivers.
- High overall efficiency.
- High frequency level adjustment (+/-3 dB).
- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
|Frequency Response||60 Hz – 25 kHz|
|Nominal Impedance||6 Ohms|
|Sensitivity (1 W @ 1 m)||88 dB|
|Maximum SPL||108.8 dBA|
|Power Handling (RMS)||100 W|
|Recommended Amplifier Requirements||20 – 100 W|
|Crossover Frequency||2.6 kHz @ 12 dB / Octave|
|Drive Unit Complement||2 x 4" MMP II Cone Bass Driver 1" C-CAM Pivoting Gold Dome Tweeter|
|Adjustment Controls||HF Level Switch (+3 dB / 0 dB / -3 dB)|
|Overall Dimensions (H x W)||217 x 333 mm (8 9/16 x 13 1/16")|
|Overall Depth (Including Grille)||103 mm (4 1/16")|
|Mounting Depth||97 mm (3 13/16")|
|Cut-Out Dimensions||183 x 299 mm (7 3/16 x 11 3/4")|
|Fixing Type||4 Position Tri-Grip Dog Leg Fixings|
|Construction Material||Mineral Filled ABS Plastic (RoHS 2 Compliant)|
|Weight||2.5 kg (5 lb 8 oz)|
|Pre-Construction Bracket||WB4LCR Pre-Construction Bracket (Dark Brown)|
|Sold As||Single Unit|
