CP-WT380IDC

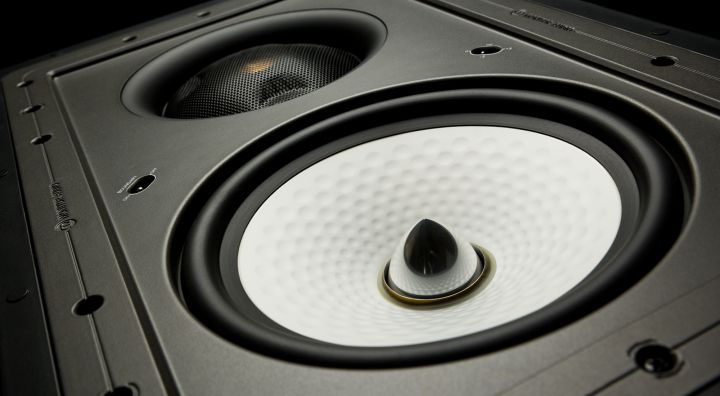

Incorporating Monitor Audio’s innovative, pivoting Inverted Dual Concentric (IDC) midrange/tweeter module and 8" RST C-CAM bass driver, the three-way CP-WT380IDC represents the highest level of new CP performance.
Key Features
- Pivoting IDC C-CAM gold dome tweeter.
- Pivoting module consisting of IDC midrange driver and C-CAM Gold Dome tweeter.
- C-CAM bass driver featuring Rigid Surface Technology (RST).
- High overall efficiency.
- High frequency level adjustment (+/-3 dB).
- Midrange frequency level adjustment.
- Boundary compensation controls.
- Die-cast aluminium front baffle.
- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
| Specifications | |
| Frequency Response | 50 Hz – 30 kHz |
| Nominal Impedance | 6 Ohms |
| Sensitivity (1 W @ 1 m) | 89 dB |
| Maximum SPL | 109.6 dBA |
| Power Handling (RMS) | 120 W |
| Recommended Amplifier Requirements | 30 – 120 W |
| Crossover Frequency | Bass Low Pass: 300 Hz @ 6 dB / Octave, Mid: 300 Hz @ 6 dB / Octave & 3 kHz @ 12 dB / Octave |
| Drive Unit Complement | 3-Way, 8" C-CAM RST Cone Bass Driver, 4" C-CAM IDC Cone Mid Range Driver, 1" C-CAM Gold Dome Tweeter (Tweeter & Midrange Driver Combined in a Pivoting Module) |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB), MF Level Switch (+3 dB/ 0 dB/ -3 dB), Boundary Compensation Switch |
| Overall Dimensions (H x W) | 472.5 x 303.5 mm (18 5/8 x 11 15/16") |
| Overall Depth (Including Grille) | 106 mm (4 3/16") |
| Mounting Depth | 99 mm (3 7/8") |
| Cut-Out Dimensions | 438 x 269 mm (17 1/4 x 10 9/16") |
| Connection | Gold Plated 'Push' Type Terminals |
| Fixing Type | 6 Position Tri-Grip Dog Leg Fixings |
| Construction Material | Mineral Filled ABS Plastic (RoHS 2 Compliant) |
| Weight | 5.62 kg (12 lb 6 oz) |
| Pre-Construction Bracket | WB10 Pre-Construction Bracket (Light Brown) |
| Sold As | Single Unit |
