PHANTOM S-280

The PHANTOM S-280 is our no-compromise in-wall powerhouse of a speaker with two 8" bass/mid-range drivers, two 10" passive radiators and a rotatable hybrid tweeter module. It delivers clean, coherent, detailed, room-filling sound and is slim enough to fit into almost any standard wall.


Wide Dispersion

Wide dispersion DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers.

Slim Cabinet

With a depth of 100-103 mm, our slim-profile DALI PHANTOM speakers fit conveniently into most standard walls.

Patented SMC

Our patented Soft Magnetic Compound (SMC) minimises colouration and distortion, compared with conventional drive design.

10" Passive Radiator

Includes the high-performance 10" carbon fibre passive bass reflex woofer from our high-end DALI SUB P-10 DSS subwoofer.


The Ultimate Performance

Innovative technologies for full frequency response.

The DALI PHANTOM S-280 offers ultimate custom install loudspeaker performance without sacrificing valuable living room space. With proven speaker technologies, such as our signature wood fibre cones, low-loss rubber surrounds, solid MDF front baffle, hybrid tweeter module and our patented SMC magnet design, the S-280 delivers a no-compromise in-wall audio performance that's out of this world.

DALI PHANTOM S-280 In Wall Speaker

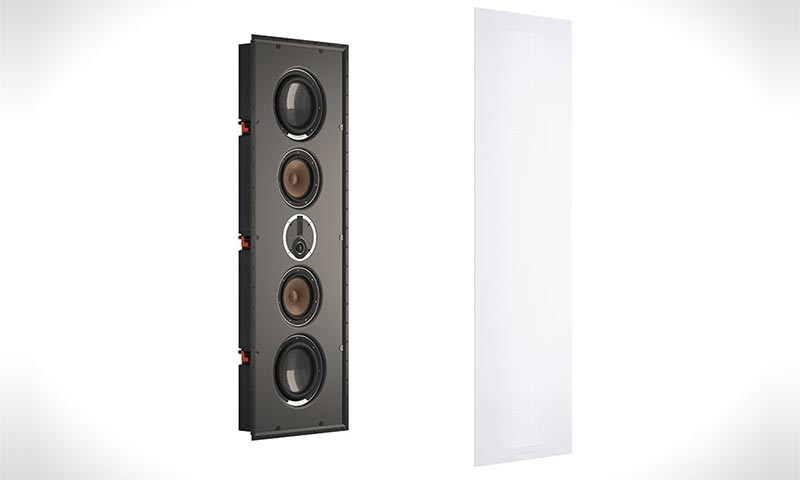

Low Profile Cabinet

Elegant, slim design for serious in-wall audio.

The PHANTOM S-280 features a slim cabinet that fits into almost any standard wall. The extruded aluminium surround provides an elegant, non-intrusive frame for the speaker, while the magnet-mounted front grille adds a discreet visual presence. The solid MDF cabinet provides a robust platform for the drivers, while the dogleg mounting system makes installation simple.

DALI PHANTOM S-280 In Wall Speaker

Patented SMC

Reducing distortion with Soft Magnetic Compound.

The two 8" woofers include our patented SMC magnet system developed originally for the EPICON series. SMC has the unique ability to deliver very high magnetic conductivity and very low electrical conductivity, which dramatically lowers distortion while delivering all the benefits of a traditional magnet system.

DALI PHANTOM S-280 In Wall Speaker

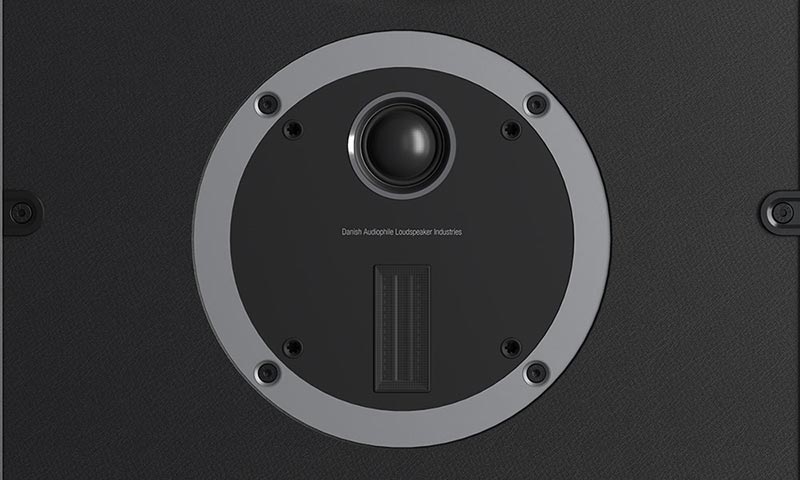

Hybrid Tweeter

The master of wide dispersion.

Combining a 29 mm soft dome tweeter with a high-performance ribbon tweeter, our patented hybrid tweeter module renders high frequencies with amazing detail and with a wide dispersion pattern that outperforms all other tweeter technologies. The module can also be rotated when installed as a centre speaker in a multichannel setup.

DALI PHANTOM S-280 In Wall Speaker

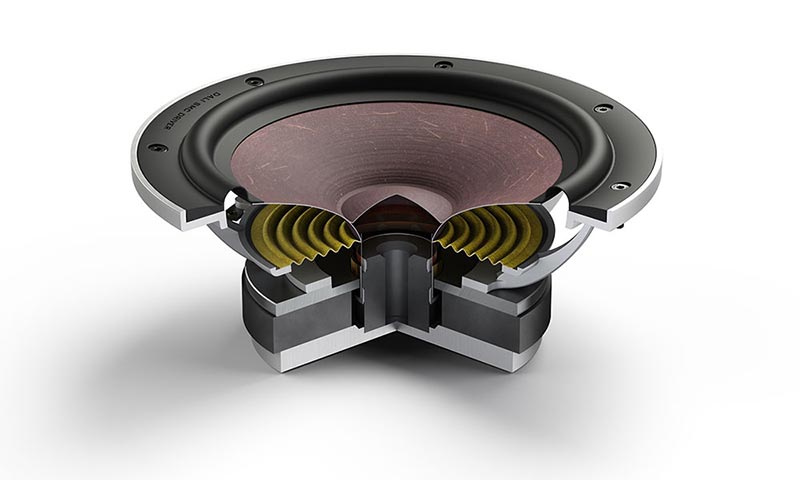

Optimised Woofers

Combining technologies for maximum bass/midrange response.

The two specially developed 8" SMC woofers are optimised for both bass and midrange performance, feauturing our signature wood fibre cone and patented SMC magnet system developed for the EPICON series. The two 10" passive bass reflex woofers are based on the passive radiator from our high-end SUB P-10 DSS subwoofer. By using the same aluminium chassis and soft surround carbon fibre cone, the passive radiators reach deep down into the true lower frequencies to deliver a believable large-box speaker sound in a very slim cabinet.

DALI PHANTOM S-280 In Wall Speaker

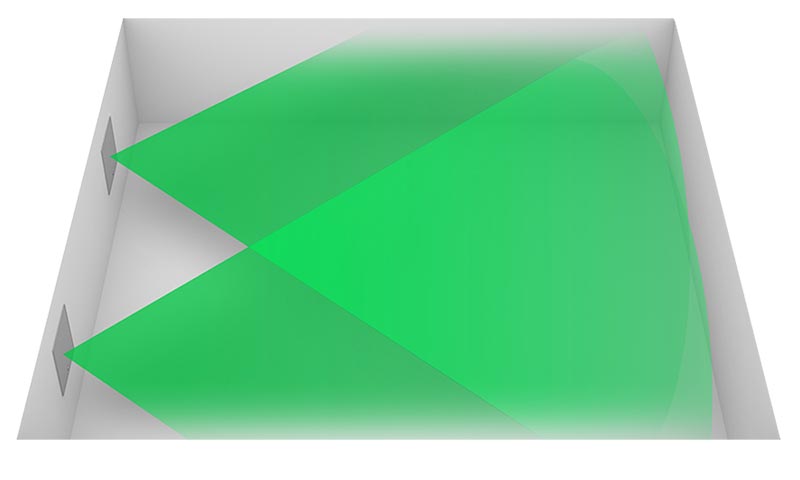

Wide Dispersion

Easy integration in any room.

All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM S series speakers, which are mounted flush with the surface of a wall.

DALI PHANTOM S-280 In Wall Speaker
Specifications
Frequency Range (+/-3 dB) 48 Hz - 25 kHz
Sensitivity (2.83 V/1 m) 89 dB
Nominal Impedance 8 Ohms
Maximum SPL 112 dB
Recommended Amplifier Power 40 - 400 Watts
Crossover Frequency 3,000 / 15,000 Hz
Hybrid Tweeter Module, Super High Frequency Driver - Quantity 1 x 17 x 45 mm
Hybrid Tweeter Module, Super High Frequency Driver - Diaphragm Type Ribbon
Hybrid Tweeter Module, High Frequency Driver - Quantity 1 x 28 mm
Hybrid Tweeter Module, High Frequency Driver - Diaphragm Type Soft Textile Dome
Low Frequency Driver - Quantity 2 x 8" (203 mm)
Low Frequency Driver - Diaphragm Type Wood Fibre Cone
Low Frequency Passive Driver - Quantity 2 x 10" (254 mm)
Low Frequency Passive Driver - Diaphragm Type Carbon Fibre Cone
Enclosure Type Closed Box With Dual Passive Radiators
Connection Input Single Wire
Recommended Placement In Wall
Dimensions (H x W x D) 1,527 x 527 x 110 mm
Cut-Out Dimensions (H x W x D) 1,495 x 495 x 103 mm
Weight 35.0 kg
Accessories Included Manual, Cut-Out Template, 3 mm Allen Key, Front Grille
