CS160
The CS160 in-ceiling model couples a 6-inch MMP II driver with a pivoting C-CAM Gold Dome tweeter.

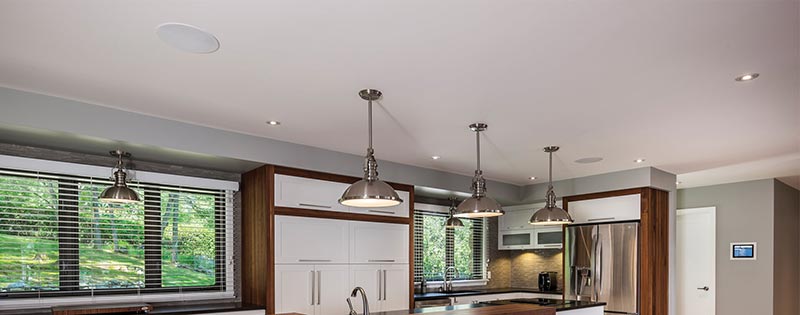

Delivering great imaging and dynamics from a brilliantly compact design, the CS160 is perfect for high performance, ultra-discreet custom-installed systems.
| Specifications | |
| Frequency Response | 60 Hz – 30 kHz |
| Nominal Impedance | 6 Ohms |
| Sensitivity (1 W @ 1 m) | 88 dB |
| Maximum SPL | 107.2 dBA |
| Power Handling (RMS) | 70 W |
| Recommended Amplifier Requirements | 15 – 70 W |
| Drive Unit Complement | 1 x 6" MMP II Cone Bass Driver, 1 x 1" (25 mm) C-CAM Pivoting Gold Dome Tweeter |
| Acoustic Configuration | 2 Way |
| Overall Dimensions (Including Grille (H x W)) | Round: 204.2 mm (8 1/16"), Square: 199.2 x 199.2 mm (7 13/16 x 7 13/16") |
| Mounting Depth | 99 mm (3 7/8") |
| Cut-Out Hole Diameter | 170 mm (6 11/16”) |
| Fixing Type | 3 Position Tri-Grip Dog Fixings |
| Connection | Gold Plated ‘Push’ Type Terminals |
| Grille Attachment | Magnetic |
| Construction Material | Mineral Filled ABS, RoHS Compliant |
| Weight | 2.10 kg (4 lb 10 oz) |
| Pre-Construction Bracket | CB5 Pre-Construction Bracket (Blue) |
| Back Box | CCBOX-R, CMBOX-R |
| Sold As | Single Unit |
