The CP-CT260's pivoting C-CAM tweeter is joined by a 6" C-CAM bass driver - and high frequency level adjustment by a boundary compensation control for optimum bass tuning when positioned near room corners.
Optional square or premium grille can be used with this model.
- Pivoting C-CAM Gold Dome tweeter and C-CAM bass driver.
- High overall efficiency.
- High frequency level adjustment (+/-3 dB).
- Boundary compensation controls.
- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
|Frequency Response||66 Hz – 25 kHz|
|Nominal Impedance||6 Ohms|
|Sensitivity (1 W @ 1 m)||88 dB|
|Maximum SPL||106.9 dBA|
|Power Handling (RMS)||65 W|
|Recommended Amplifier Requirements||20 – 65 W|
|Crossover Frequency||2.6 kHz @ 12 dB / Octave|
|Drive Unit Complement||2-Way, 6" C-CAM Cone Bass Driver, 1" C-CAM Pivoting Gold Dome Tweeter|
|Adjustment Controls||HF Level Switch (+3 dB / 0 dB / -3 dB), Boundary Compensation Switch|
|Overall Diameter (Including Grille)||285 mm (11 1/4")|
|Overall Depth (Including Grille)||155 mm (6 1/8")|
|Cut-Out Hole Diameter||244 mm (9 5/8")|
|Mounting Depth||151 mm (5 15/16")|
|Optional Square Grille - Outer Dimensions||285 x 285 mm (11 1/4")|
|Fixing Type||3 Position Tri-Grip Dog Fixings|

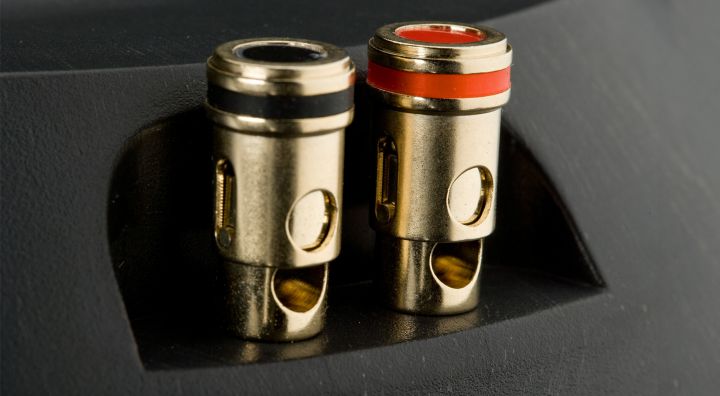

|Connection||Gold Plated 'Push' Type Terminals|
|Construction Material||Mineral Filled ABS Plastic (RoHS 2 Compliant)|
|Weight||2 kg (6 lb 2 oz)|
|Pre-Construction Bracket||CB8 Pre-Construction Bracket (Green)|
|Sold As||Single Unit|
